RCV-1000

OEM Receiver

The RCV-1000 is an external receiver enclosure. It can be configured to decode IR protocols based on carrier frequency. The cable length and cable connector can be specified per application.

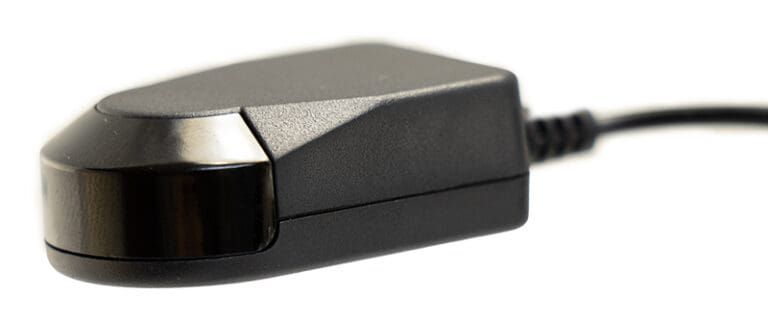

Small black receiver enclosure with stereo jack connector on a short cable.

General Specifications

Dimensions: 1.5 x 1.0 x 0.5in
38x25x13mm
Cable Connector: 3.5mm Stereo Jack or TBD
Cable Length: 2M or TBD
Feedback LED: No
Back Label: Yes

Technical Specifications

Power Consumption: ~1.2mA
Transmission Distance: ~6-9m
IR Frequency Options: 36-56KHz
RF Frequency Options: 27MHz - 2.4GHz
Operating Temperature: +5C To +40C
Storage Temperature: -40C To + 70C
Humidity Range: 10% - 90% Non-Condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Carrier Frequency:
Yes
Cable Length:
Yes
Cable Connector:
Yes
Connector Type:
Yes
Case Color:
Yes
Case Size:
No
RF Option:
Yes
