RCV-1500

OEM Receiver

The RCV-1500 is an infrared or radio frequency receiver module that is designed to be mounted on vertical surfaces. The cable length and connector type can be specified based on the application.

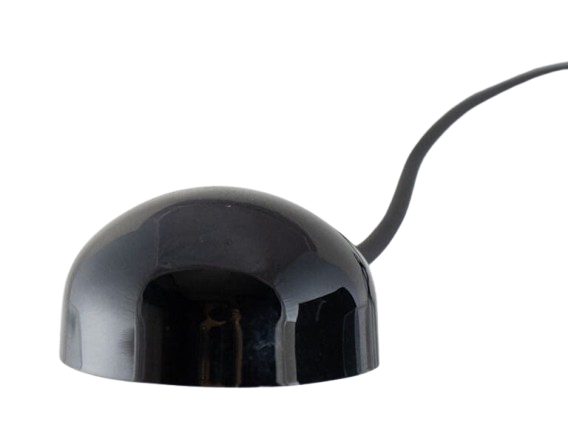

Half spherical black plastic enclosure with short cable attached

General Specifications

Dimensions: 0.9 x 0.9 x 0.5in
23 x 23 x 23mm
Cable Connector: 3.5mm Stereo Jack or TBD
Cable Length: 2M or TBD
Feedback LED: Yes
Back Label: No

Technical Specifications

Power Consumption: ~1.2mA
Transmission Distance: ~6-9m
IR Frequency Options: 36-56KHz
RF Frequency Options: 27MHz - 2.4GHz
Operating Temperature: +5C To +40C
Storage Temperature: -40C To + 70C
Humidity Range: 10% - 90% Non-Condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Carrier Frequency:
Yes
Cable Length:
Yes
Cable Connector:
Yes
Connector Type:
Yes
Case Color:
Yes
Case Size:
No
RF Option:
Yes
