RCV-5000(LV)

Low Volume Programmable Receiver

The RCV-5000 is a low volume infrared to RS232 receiver, which will decode major consumer IR protocols and output a simple ASCII string based on the code received. Supported protocols include NEC, RC5, Sony, Panasonic, Toshiba and Mitsubishi. The RCV-5000 kit includes the RCV5000 receiver, RS232 cable and external power supply.

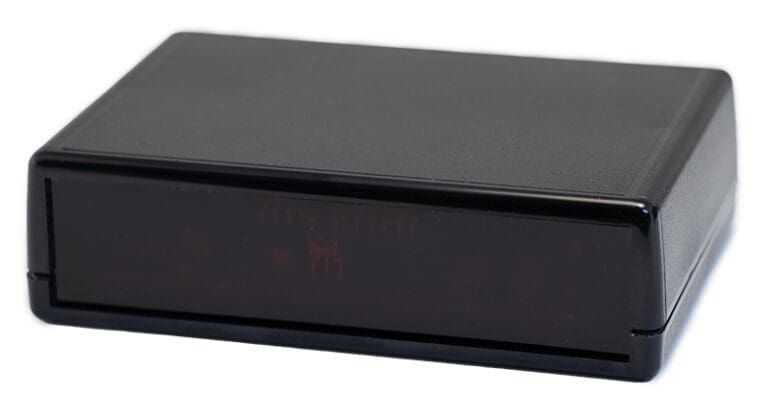

Rectangular black enclosure with a dark red lens in front panel

General Specifications

Dimensions: 4.25 x 3x1.25 in
107 x 76 x 31mm
Cable Connector: DB9 Male
Cable Length: 2M
Feedback LED: Yes
Back Label: Yes

Technical Specifications

Power Consumption: ~1.2mA
Transmission Distance: ~6-9m
IR Frequency Options: 36-38KHz
RF Frequency Options: N/A
Operating Temperature: +5C To +40C
Storage Temperature: -40C To + 70C
Humidity Range: 10% - 90% Non-Condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Carrier Frequency:
No
Cable Length:
No
Cable Connector:
No
Connector Type:
No
Case Color:
No
Case Size:
No
RF Option:
No
