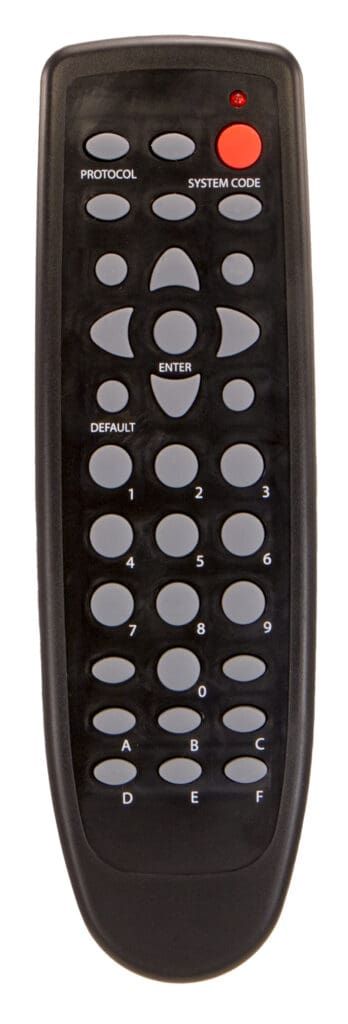

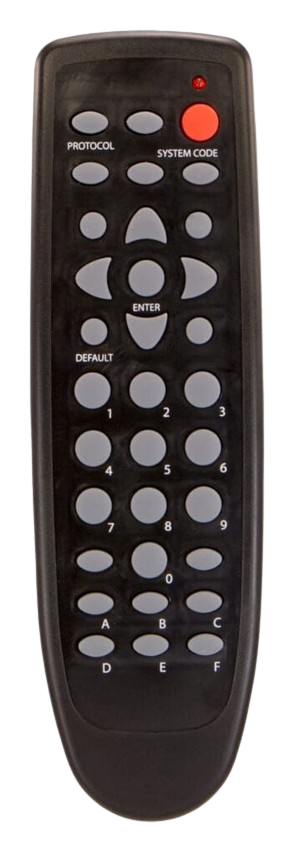

SC-33B(LV)

Low Volume Programmable Infrared Remote Control

The SC-33B is a low volume 33 button infrared (IR) remote control with a silicone rubber keypad. The IR protocol and System Code can be selected by a combination of key presses and stored in non-volatile memory. A custom keypad overlay can be used to mask off unused keys and create a unique key layout.

Infrared Protocols Supported Include: NEC, RC5, Sony, Toshiba, Mitsubishi and Matsushita.

SC-38B Infrared Remote Control - Low Volume Model

General Specifications

Max Keys: 33
Dimensions: 6.5 x 1.95 x 0.83in.
165 x 45 x 20mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes - Red
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA

Technical Specifications

Power Consumption: ~50mA @ Transmit
Transmission Distance: ~6-9m
IR Frequency Options: 38KHz
RF Frequency Options: n/a
Operating Temperature: +5C to +40C
Storage Temperature: -40C to 70C
Humidity Range: 10% - 90% Non-Condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Button Colors:
No
Button Printing:
No
Case Color:
No
Custom Overlay /
Membrane Keypad:
Yes
RF Option:
No
