SH-15A

OEM Infrared or Radio Frequency Remote Control

The SH-15A is a 15 button OEM remote control with rubber keypad and metal dome pads for improved tactile feedback. The SH-15 is powered by AAA x 2 batteries and has a screw to secure the battery compartment.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

The SH-15A OEM Remote Control is also available in low volume.

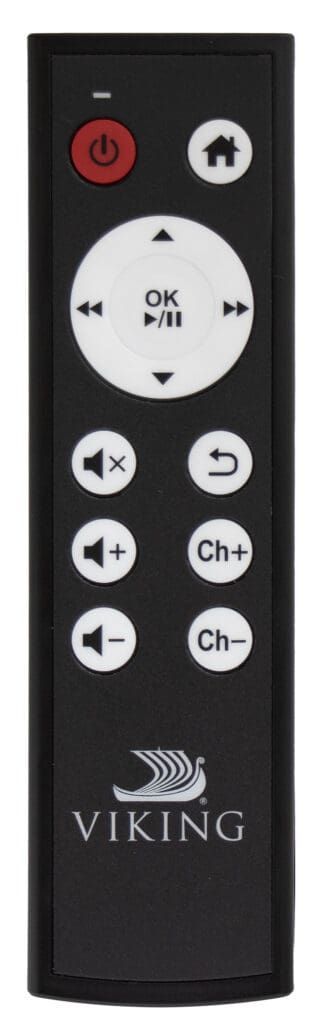

SH15 OEM Remote Control - 15 Key remote control with navigation pad

General Specifications

Max Keys: 15

Dimensions: 6.3 x 1.7 x 0.8 in. 160 x 44 x 20mm

Keypad Type: Silicone Rubber w/snap

Feedback LED Available: Yes

Overlay Available: Yes

Back Label Available: Yes

Feedback LED: Yes

IR Lens: Yes

Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit

Transmission Distance: 20-30ft (6-9m) Standard

IR Frequency Options: 36KHz-56KHz

RF Frequency Options: 27MHz-2.4GHz

Operating Temperature: +5C to +40C

Storage Temperature: -40C to +70C

Humidity Range: 10% to 90% non-condensing

Compliance: RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /
Membrane Keypad:

Yes

RF Option:

Yes

Downloads

SH15 Artwork Template

Infrared Protocol Samples
