OEM Infrared or Radio Frequency Remote Control

The SH-50D is an OEM remote control enclosure that has a maximum of 50 buttons. It uses a rubber keypad and AAA x 2 batteries.

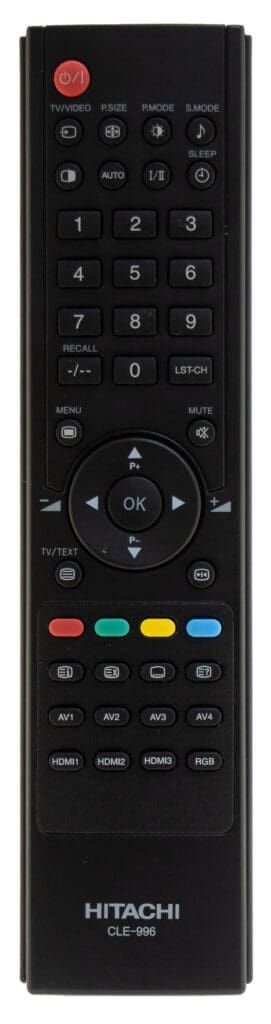

Pictured example shows circular navigation keypad with center enter button, and numeric keypad placement. Color keys and other custom design options available.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

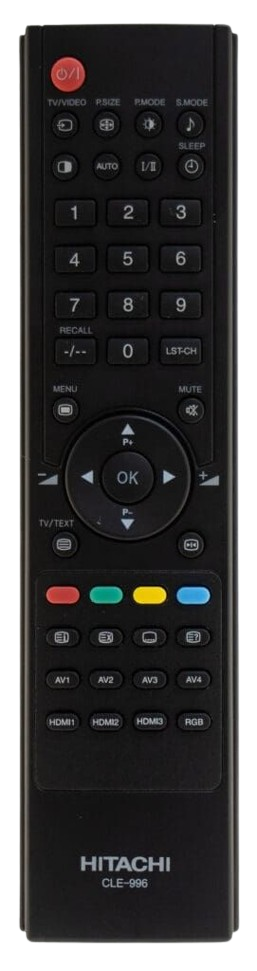

SH-50D 50 button OEM remote control front

General Specifications

Max Keys: 50
Dimensions: 8.68 x 2 x 0.75in.
220 x 51 x 19mm
Keypad Type: Silicone Rubber - See Glow Key Example
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: Yes
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Button Colors:
Button Printing:
Case Color:
Custom Overlay /
Membrane Keypad:
RF Option:
