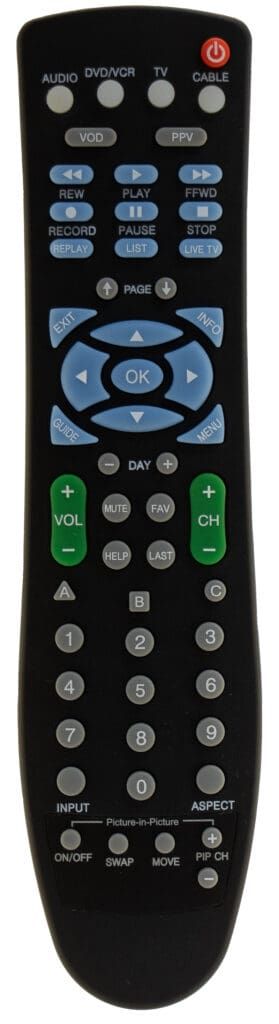

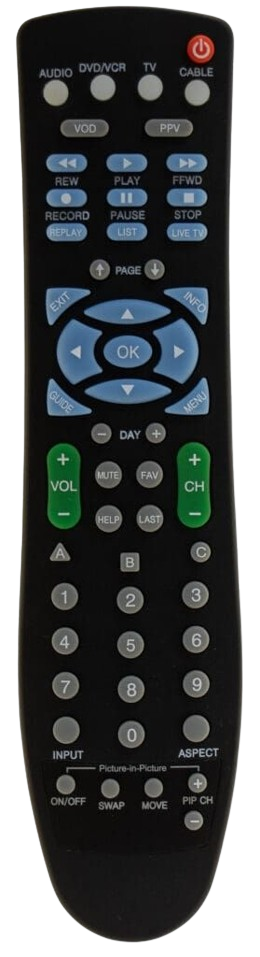

The SP-57MT is a 57 button OEM remote control with rubber keypad and AAA x 2 batteries. It can be configured for infrared (IR) and radio frequency (RF) applications.
SP-57MT
OEM Infrared or Radio Frequency Remote Control
General Specifications
Max Keys: 57
Dimensions: 8.3 x 2 x 1.25in.
211 x 51 x 32mm
211 x 51 x 32mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA
Technical Specifications
Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH
Available Options
Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Membrane Keypad:
Yes
RF Option:
Yes
