SR-07

OEM Infrared or Radio Frequency Remote Control

The SR-07 is a 7 key OEM remote control with rubber keypad and AAA x 2 batteries. The SR-07 remote control model utilizes a simple key layout with left, right, up, down navigation keys as well as an enter key. Available with Infrared (IR) or Radio Frequency (RF) transmission protocols.

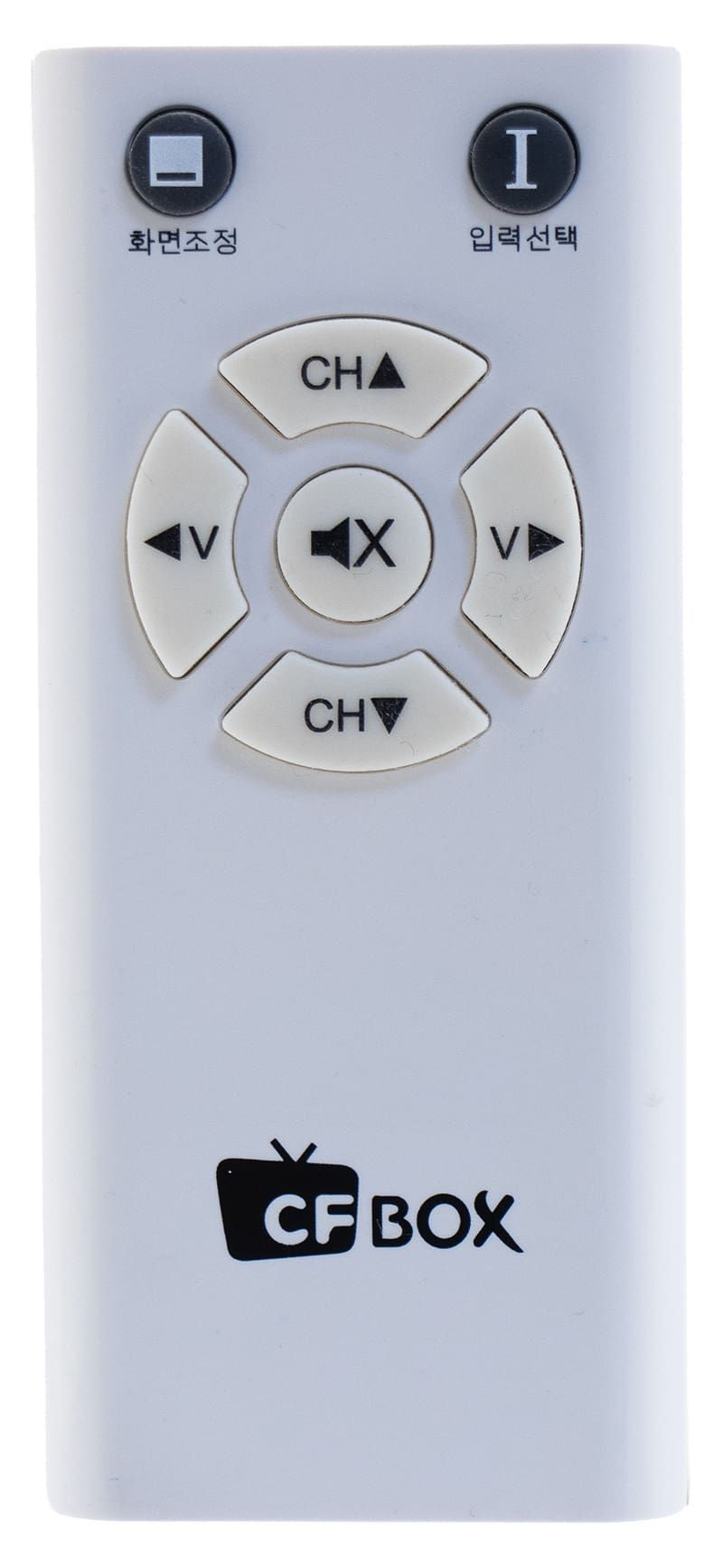

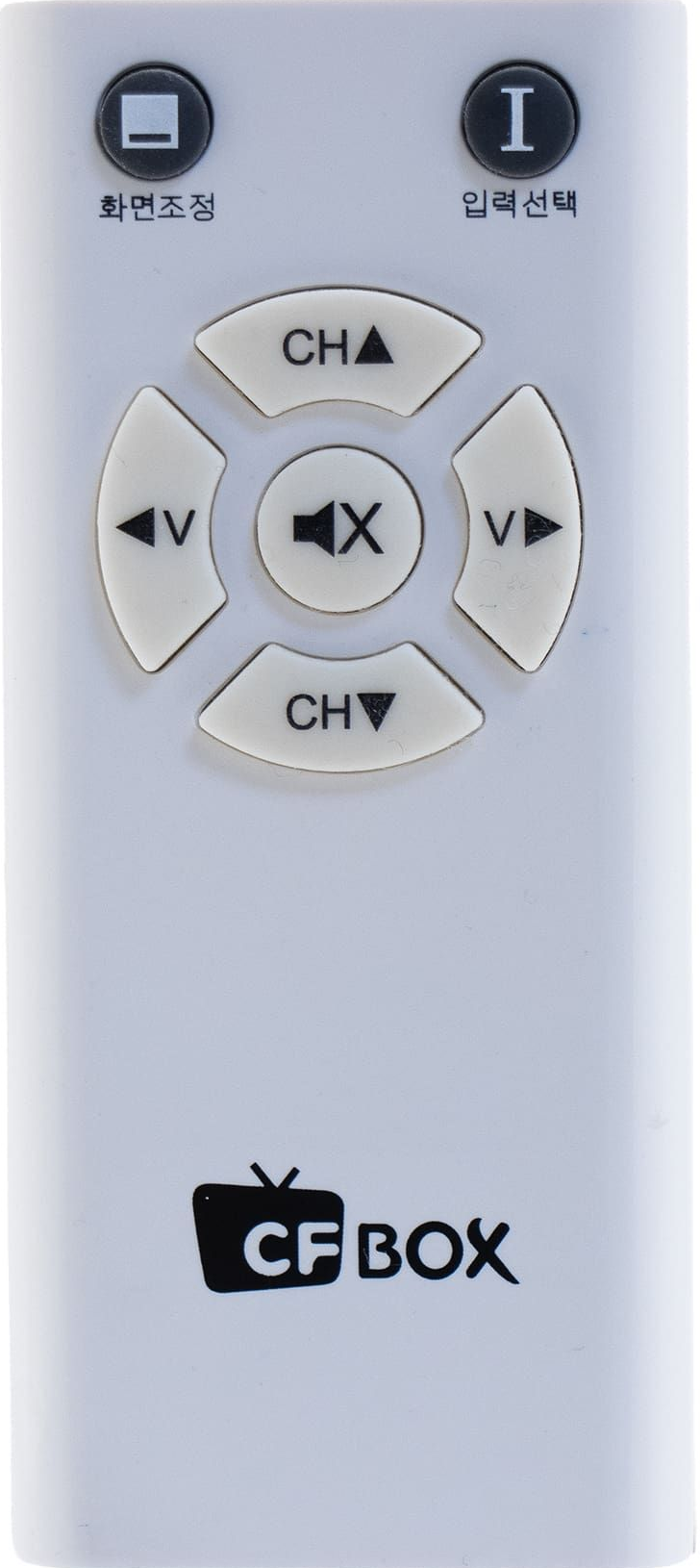

SR-07 OEM Remote Control Infrared or Radio Frequency Front

General Specifications

Max Keys: 7
Dimensions: 4.2 x 1.8 x 0.6in.
110 x 48 x 14mm
Keypad Type: Silicone rubber
Feedback LED Available: Yes
Overlay Available: No
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
No
RF Option:
Yes
