OEM Infrared or Radio Frequency Remote Control

The SR-32C is a 32 button credit card OEM remote control enclosure. It utilizes a membrane keypad with a maximum of 32 buttons and is powered by CR2025 x 1 lithium coin size battery.

Membrane domed keypad key layout can be customized to fit your application requirements. Domed membrane keypads are also easy to wipe down to maintain a clean hygienic (hygenic) surface. Domes can be manufactured using polydome or metal dome (more snap) design.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

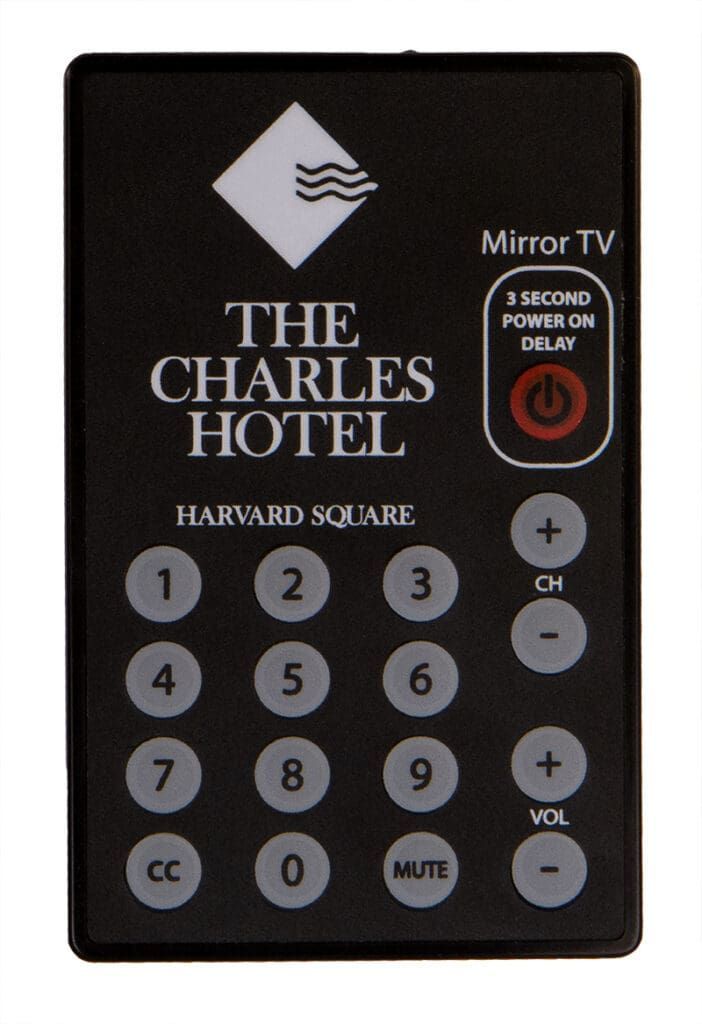

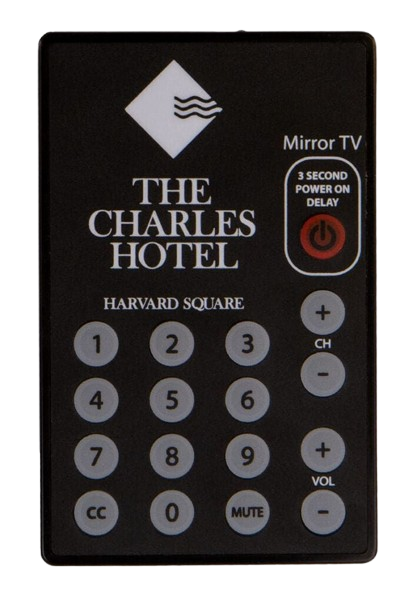

SR-32C OEM Remote Control. 32 Buttons front

General Specifications

Max Keys: 32
Dimensions: 3.3 x 2 x 0.29in.
85 x 52 x 7.3mm
Keypad Type: Membrane
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Button Colors:
Button Printing:
Case Color:
Custom Overlay /
Membrane Keypad:
RF Option:
