OEM Infrared or Radio Frequency Remote Control

The SR-53C is a 53 button OEM remote control with rubber keypad and AAA x 2 batteries.

Pictured example shows navigation keys with center enter button, up and down keys and numeric keypad placement.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design. Combination URC code library and unique device codes matching your device can also be programmed.

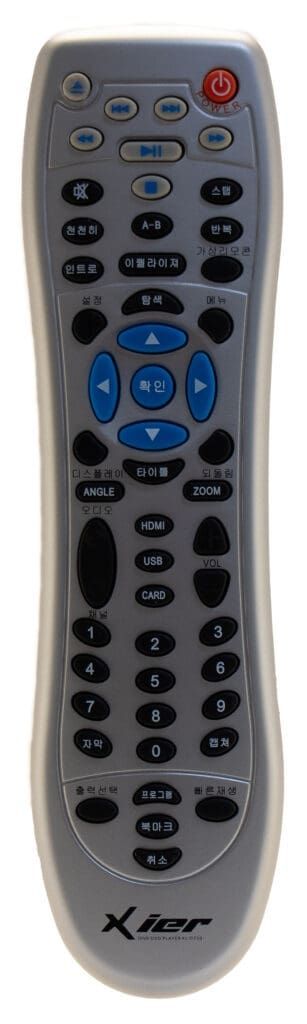

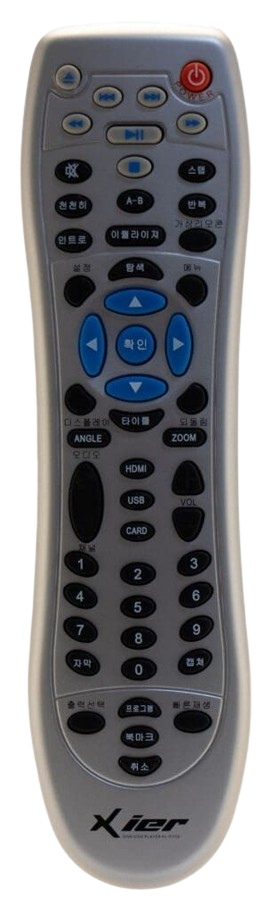

SR-53C 53 button OEM Remote Control Front

General Specifications

Max Keys: 53
Dimensions: 4.7 x 2 x 1.2in.
119 x 52 x 31mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: No
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Button Colors:
Button Printing:
Case Color:
Custom Overlay /
Membrane Keypad:
RF Option:
