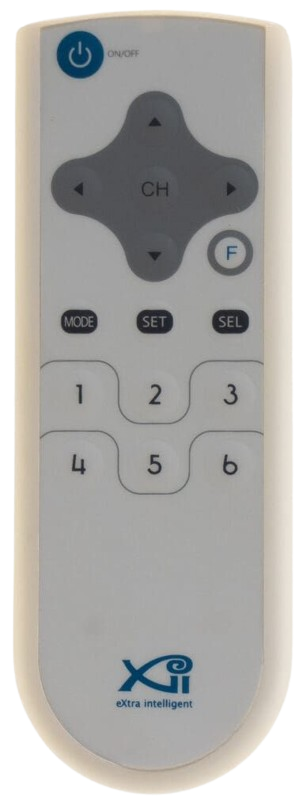

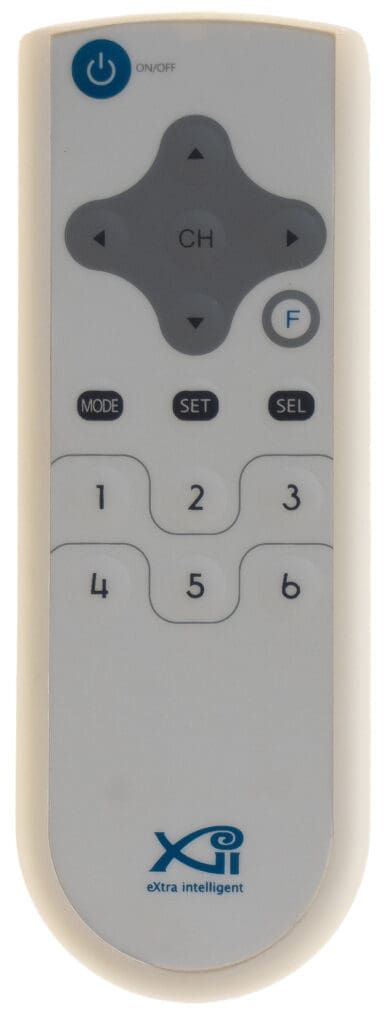

The SX-24 is a 24 button OEM remote control with a membrane keypad. The SX-24 model has a maximum of 24 buttons and uses one CR2025 lithium coin battery.
Membrane domed keypad key layout can be customized to fit your application requirements. Domed membrane keypads are also easy to wipe down to maintain a clean hygienic (hygenic) surface. Domes can be manufactured using polydome or metal dome (more snap) design.
Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.
SX-24
OEM Infrared or Radio Frequency Remote Control
General Specifications
Max Keys: 24
Dimensions: 5 x 1.75 x 0.3in.
127 x 44.5 x 7.6mm
127 x 44.5 x 7.6mm
Keypad Type: Membrane
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 1 x CR2025 Lithium Coin
Technical Specifications
Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH
Available Options
Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Membrane Keypad:
Yes
RF Option:
Yes
