Low Volume Infrared Receiver

The RCV-1000 is a low volume 38KHz external receiver module. The RCV-1000 receiver has a 2 meter cable with a 3.5mm stereo jack connector. It specifically designed to be used as an external receiver for the RCV-5000 IR/RS232 receiver. It can also be used as a stand-alone receiver for audio/video devices like Set Top Boxes, IR extenders and similar products.

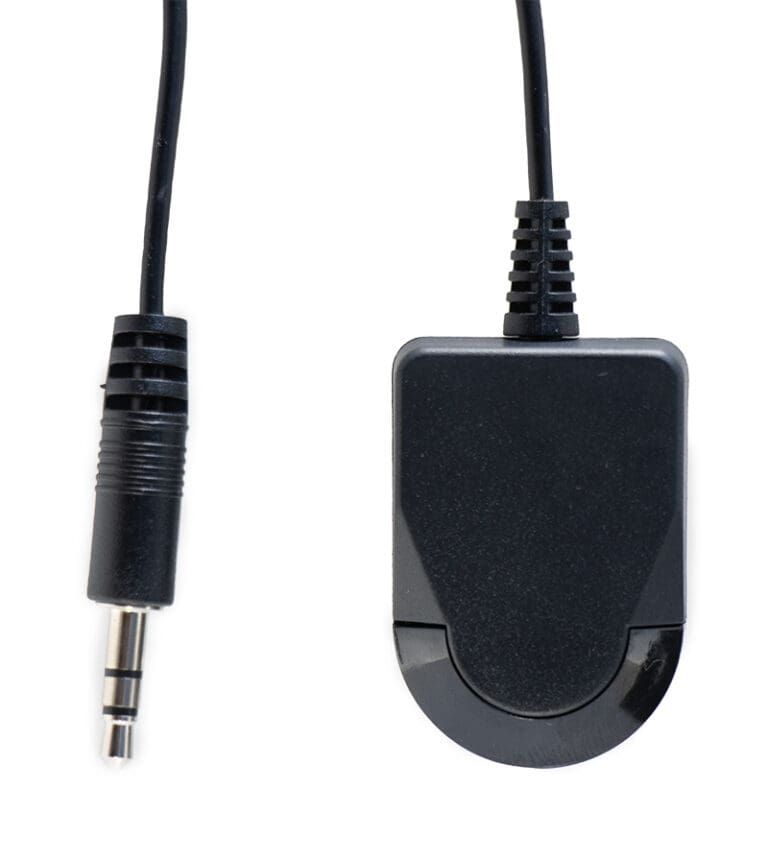

Small black receiver enclosure with stereo jack connector on a short cable.

General Specifications

Dimensions: 1.5 x 1.0 x 0.5 in
38 x 25 x 13mm
Cable Connector: 3.5mm Stereo Jack
Cable Length: 2M
Feedback LED: No
Back Label: No

Technical Specifications

Power Consumption: ~1.2mA
Transmission Distance: ~6-9m
IR Frequency Options: 38KHz
RF Frequency Options: N/A
Operating Temperature: +5C To +40C
Storage Temperature: -40C To + 70C
Humidity Range: 10% - 90% Non-Condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Carrier Frequency:
Cable Length:
Cable Connector:
Connector Type:
Case Color:
Case Size:
RF Option:
