OEM Infrared or Radio Frequency Remote Control

The SR-14L is an OEM remote control enclosure with LCD panel and membrane keypad. The SR-14L has a maximum of 21 keys and uses AAA x 2 batteries. Custom LCD layout designs are available.

Membrane domed keypad key layout can be customized to fit your application requirements. Domed membrane keypads are also easy to wipe down to maintain a clean hygienic (hygenic) surface. Domes can be manufactured using polydome or metal dome (more snap) design.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

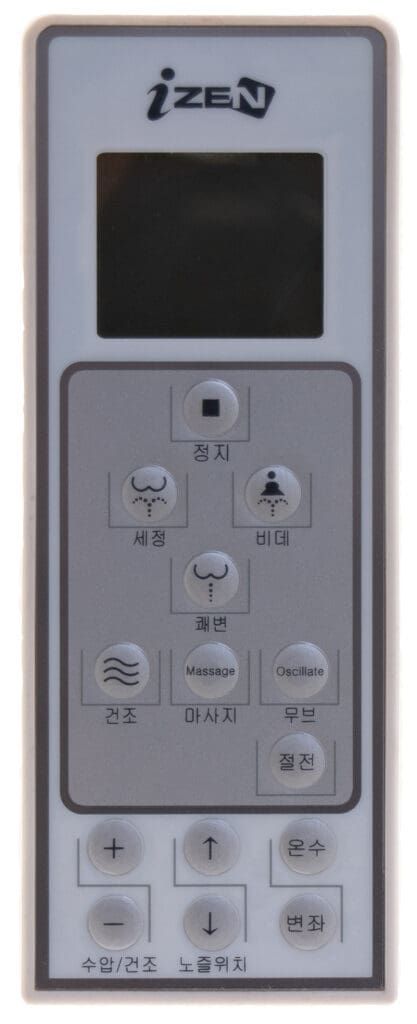

SR-14L Remote Control with LCD and membrane keypad Front

General Specifications

Max Keys: 21
Dimensions: 5.7 x 2.2 x 1in.
145 x 55 x 23mm
Keypad Type: Membrane
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: Yes
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Button Colors:
Button Printing:
Case Color:
Custom Overlay /
Membrane Keypad:
RF Option:
