The SR-23B is a 23 button OEM remote control with 8 position navigation pad and partial keypad overlay. The SR-23B remote control model uses a rubber keypad and AAA x 2 batteries.

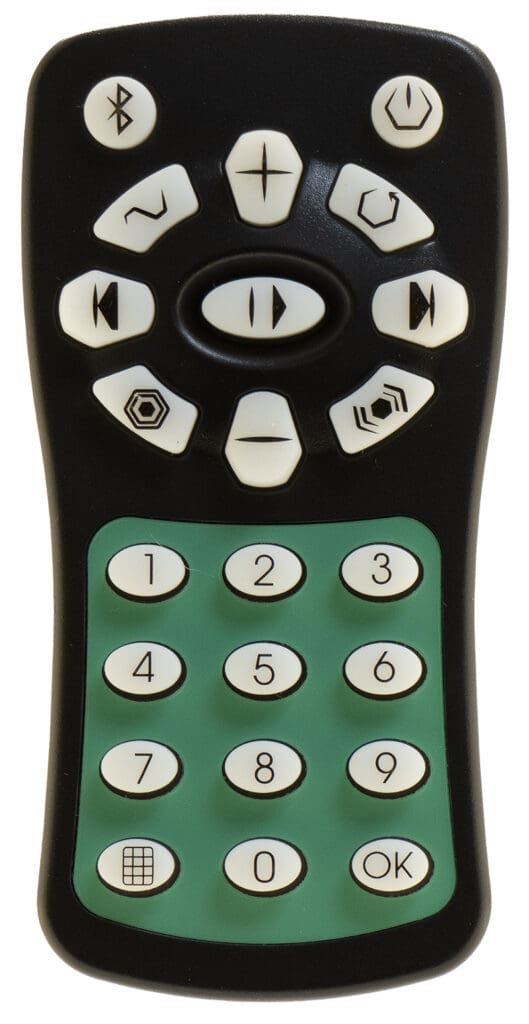

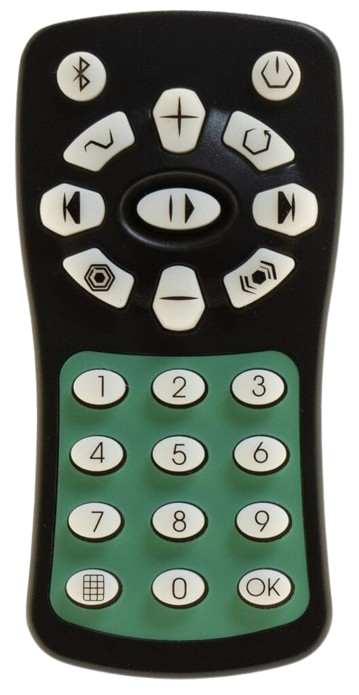

Pictured example shows the 8 button navigation keys with center enter button. Lower key area with 12 available keys uses an overlay so keys in this area can have a custom configuration, or be masked off completely. Custom design options like key colors, case color and backlighting are available.
Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.
SR-23B
OEM Infrared or Radio Frequency Remote Control
General Specifications
Max Keys: 23
Dimensions: 3.7 x 1.9 x 0.8in.
95 x 48 x 20mm
95 x 48 x 20mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA
Technical Specifications
Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH
Available Options
Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Membrane Keypad:
Yes
RF Option:
Yes
