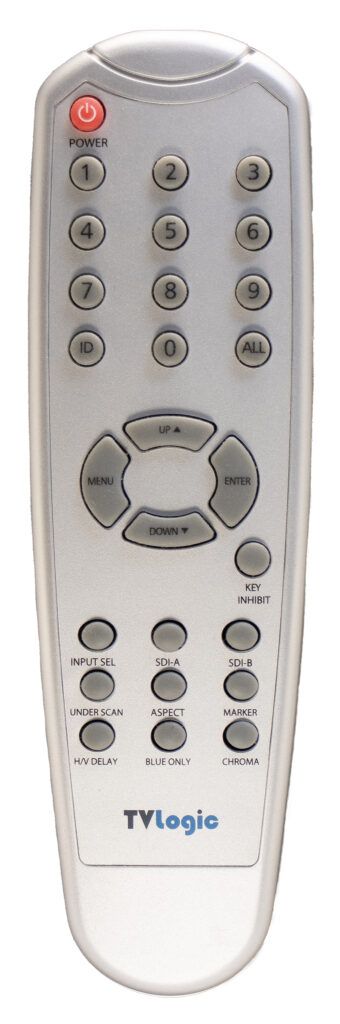

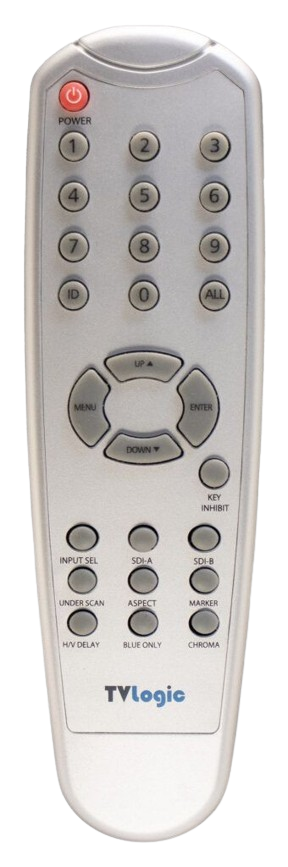

SR-34

OEM Infrared or Radio Frequency Remote Control

The SR-34 is a 34 button OEM remote control enclosure with a rubber keypad and AAA x 2 batteries. It can be configured for use with IR or RF applications.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

Full face overlay allows for unique key configurations to conform to your remote control application design requirements.

Example applications: Audio Visual, Hospitality Hotel Guestroom, Medical, Computer via USB or RS-232 IR receivers.

General Specifications

Max Keys: 34

Dimensions: 6.5 x 1.9 x 0.9in.
164 x 48 x 24mm

Keypad Type: Silicone Rubber

Feedback LED Available: Yes

Overlay Available: Yes

Back Label Available: Yes

Feedback LED: Yes

IR Lens: No

Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit

Transmission Distance: 20-30ft (6-9m) Standard

IR Frequency Options: 36KHz-56KHz

RF Frequency Options: 27MHz-2.4GHz

Operating Temperature: +5C to +40C

Storage Temperature: -40C to +70C

Humidity Range: 10% to 90% non-condensing

Compliance: RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /
Membrane Keypad:

Yes

RF Option:

Yes

Downloads

SR-34 Artwork Template

Infrared Protocol Samples
