SR-47C

OEM Infrared or Radio Frequency Remote Control

The SR-47C is a 47 button OEM remote control with a rubber keypad and AAA x 2 batteries.

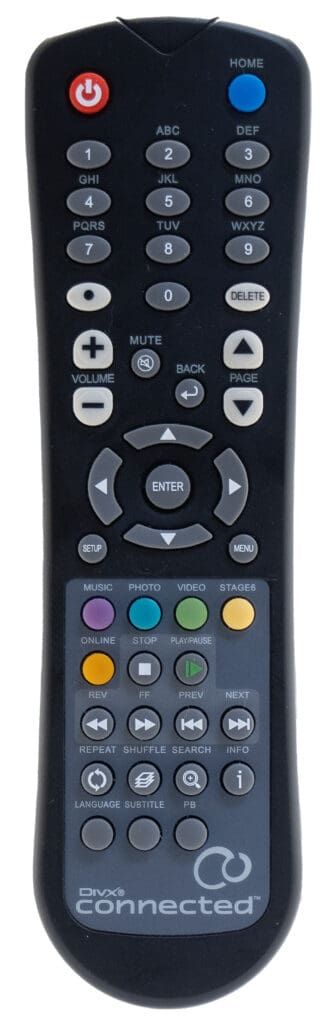

Pictured example shows navigation keys with center enter button, up and down keys and numeric keypad placement. Lower key area uses an overlay so keys in this area can have a custom configuration. Custom design options like key colors, case color and backlighting are available.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

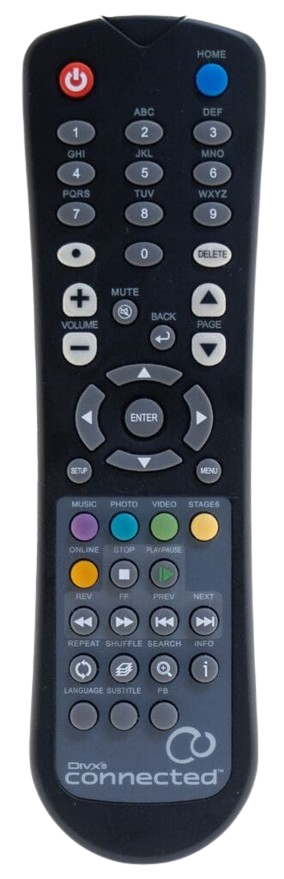

SR-47C 47 button OEM Remote Control Sam ple 2 front

General Specifications

Max Keys: 47
Dimensions: 7.2 x 2 x 0.9 in.
182.7 x 52.9 x 25 mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Yes
RF Option:
Yes
