OEM Infrared or Radio Frequency Remote Control

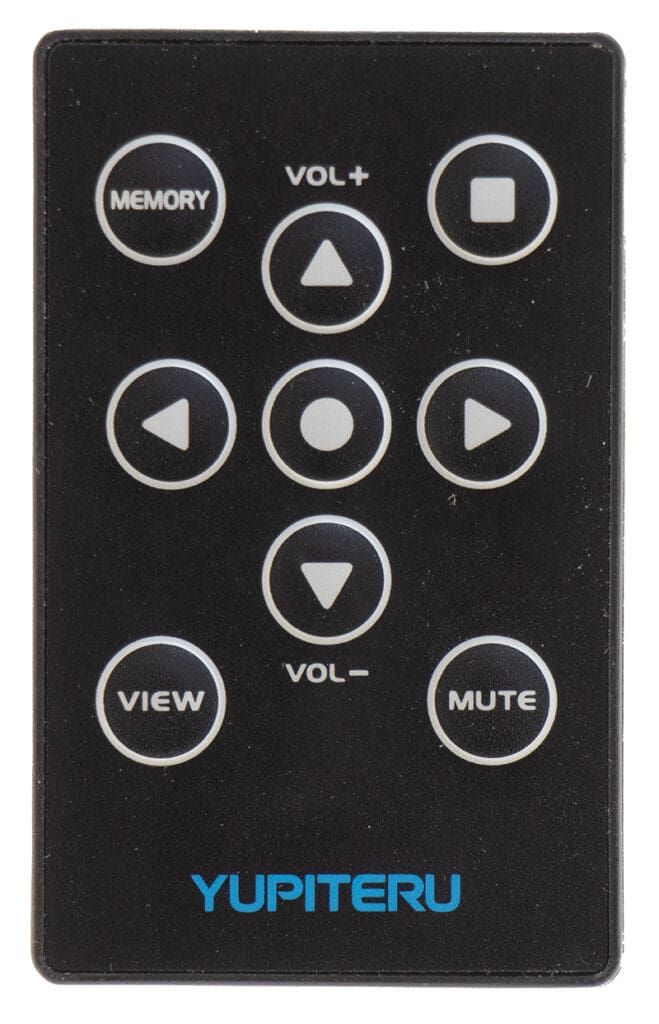

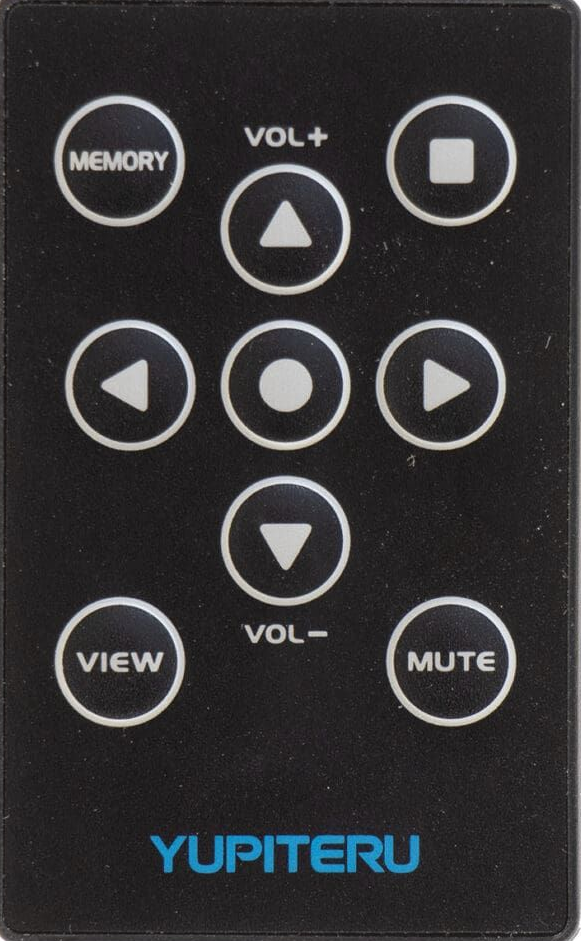

Model: SX-909 — Compact 9-key OEM remote control

Power: Operates on one (1) CR2016 coin-style battery

Key Features:

  • 9-key membrane keypad with domed keys
  • Configurable for any key count up to 9
  • Customizable key layout to fit specific application requirements
  • Easy-to-clean domed membrane surface for hygienic operation
  • Dome options: polydome or metal dome (for enhanced tactile feedback)

Customization Options:

  • Membrane graphic overlay design
  • Custom key labeling and layout configurations
  • Optional IR or RF transmission protocol support

Integration: Designed for flexible OEM applications requiring compact, durable, and cleanable controls

Availability: Offered in low to medium volumes with infrared (IR) or radio frequency (RF) transmission options

General Specifications

Max Keys:

9

Dimensions:

2.2 x 1.37 x 0.2in.
56 x 34.8 x 5.4mm

Keypad Type:

Membrane

Feedback LED Available:

Yes

Overlay Available:

No

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

1 x CR2016 Lithium Coin

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
