BW7070(LV)

Low-volume Programmable Infrared Remote Control

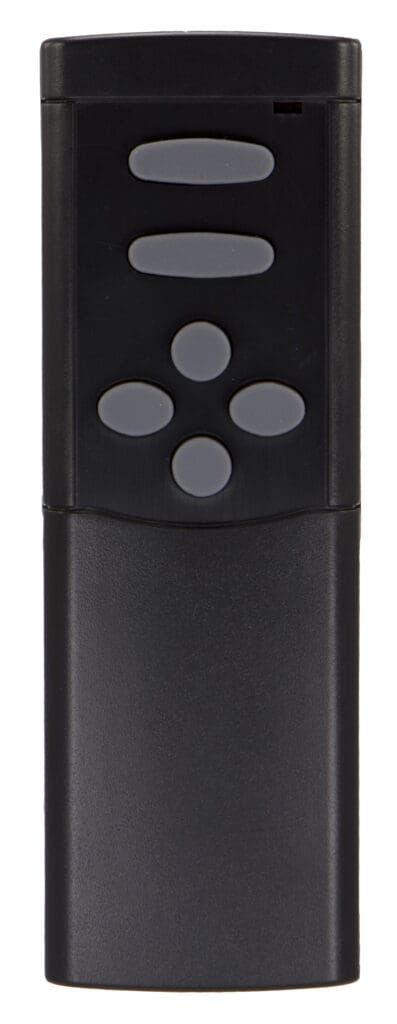

Model: BW7070 — 8-Button OEM Remote Control

Key Features:

• 8-button design with rubber keypad
• Powered by AAA x 2 batteries
• Uses a custom IR protocol, configurable to also transmit the NEC IR protocol
• Multiple system codes available via keypress combinations, allowing multiple remotes to operate in the same environment
• Supports custom keypad overlays to remove unused keys and create a unique key layout
• Available in low volume production

General Specifications

Max Keys:

8

Dimensions:

4.76 x 1.65 x 0.6in
126 x 42 x 17mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes - Red

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

~50mA @ Transmit

Transmission Distance:

~6-9m

IR Frequency Options:

38KHz

RF Frequency Options:

n/a

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

No

Button Printing:

No

Case Color:

No

Custom Overlay /
Membrane Keypad:

Yes

RF Option:

No
