SC-44C

OEM Infrared or Radio Frequency Remote Control

Model: SC-44C — 44-Button OEM Remote Control

Description:

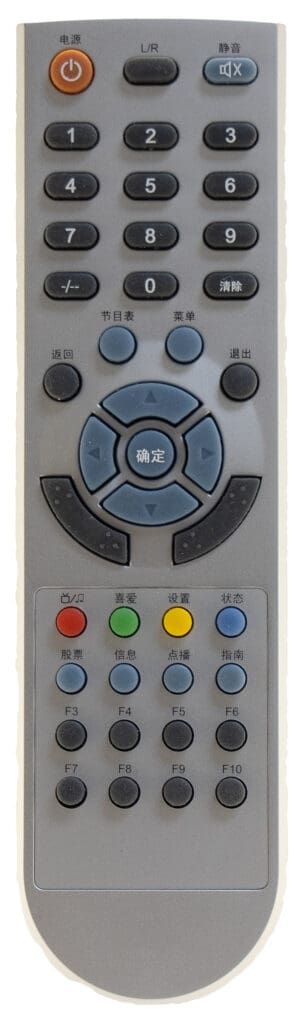

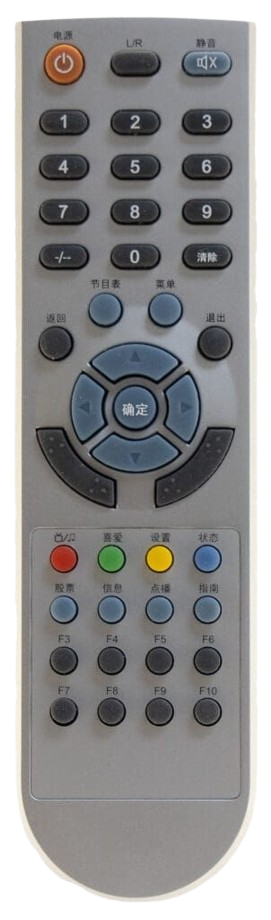

The SC-44C is a 44-button OEM remote control featuring a durable rubber keypad and powered by two AAA batteries. The pictured example includes navigation keys with a center enter button, up and down keys, and a numeric keypad layout. The lower key area uses an overlay, allowing for custom configurations or masked-off sections as needed.

Customization Options:

  • Custom key and case colors
  • Optional backlighting for enhanced visibility
  • Configurable key layout and overlay design

Transmission Options:

  • Available in Infrared (IR) and Radio Frequency (RF) configurations
  • Compatible with Universal Remote Control (URC) infrared device databases for integration

General Specifications

Max Keys:

44

Dimensions:

7.2 x 1.95 x 0.8in.

180.3 x 49.7 x 4.5mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
