SC-45

OEM Infrared or Radio Frequency Remote Control

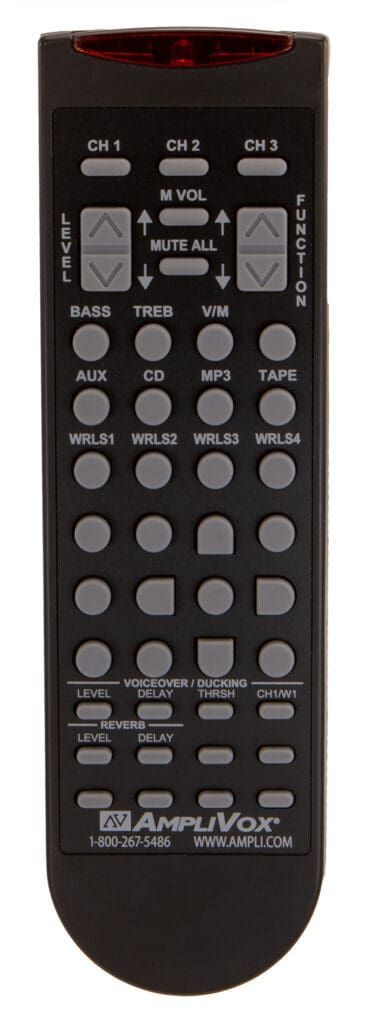

Model: SC-45 — 45-Button OEM Remote Control

Description:
The SC-45 is a 45-button OEM remote control featuring a durable rubber keypad and powered by two AAA batteries. It can be configured for use with both infrared (IR) and radio frequency (RF) applications.

Key Features:

  • 45-button layout with customizable key configurations
  • Options for custom key colors, case color, and backlighting
  • Reliable rubber keypad for excellent tactile response

Transmission Options:

  • Supports IR and RF configurations
  • Compatible with Universal Remote Control (URC) infrared device databases for integration

General Specifications

Max Keys:

45

Dimensions:

7.5 x 2.2 x 1.08in.
195 x 56 x 28mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
