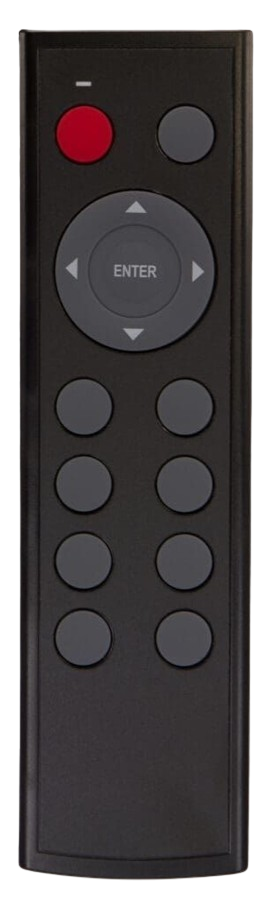

SH-15A(LV)

Low-volume Programmable Infrared Remote Control

Model: SH-15A — 15-Button Low Volume IR OEM Remote Control

Key Features:

  • 15-button design with rubber keypad
  • Powered by AAA x 2 batteries
  • Default Infrared (IR) protocol is NEC, with optional custom firmware available
  • Supports custom keypad overlays to mask unused keys and create unique key layouts
  • Available in low volume production

General Specifications

Max Keys:

15

Dimensions:

6.3 x 1.7 x 0.8 in.
160 x 44 x 20mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes - Red

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

~50mA @ Transmit

Transmission Distance:

~6-9m

IR Frequency Options:

38KHz

RF Frequency Options:

n/a

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

No

Button Printing:

No

Case Color:

No

Custom Overlay /
Membrane Keypad:

Yes

RF Option:

No
