OEM Infrared or Radio Frequency Remote Control

The HRC-540A is a 54 button OEM remote control with rubber keypad and AAA x 2 batteries with locking battery compartment.

Full face overlay allows for unique key configurations to conform to your remote control application design requirements.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

The HRC-540A OEM Remote Control is also available in low volume.

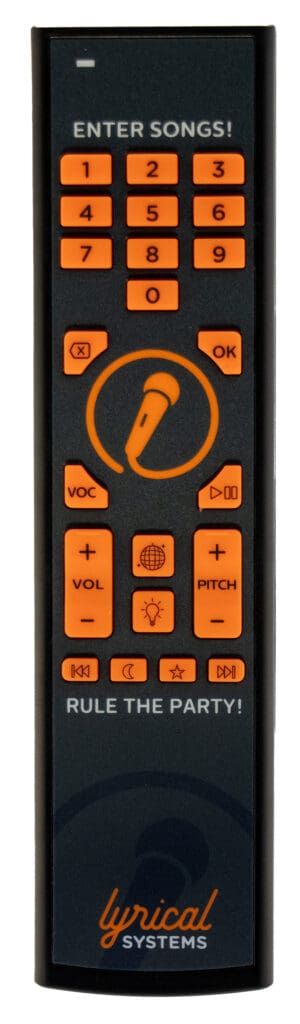

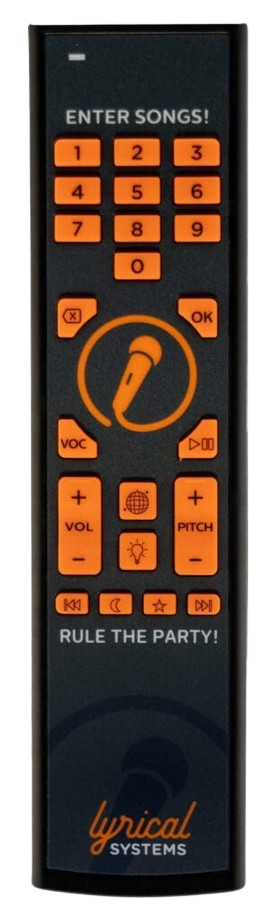

HRC-540A OEM Remote Control Sample 2 Front

General Specifications

Max Keys: 54
Dimensions: 7.4 x 1.8 x 0.6in.
193 x 48 x 19mm
Keypad Type: Rubber Keypad
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: Yes
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Button Colors:
Button Printing:
Case Color:
Custom Overlay /
Membrane Keypad:
RF Option:
