SC-33

OEM Infrared or Radio Frequency Remote Control

The SC-33 is a 33 button OEM remote control with a rubber keypad and AAA x 2 batteries.

The SC-33 model has a naviagtion pad with center enter button. Full face overlay allows for unique key configurations to conform to your remote control application design requirements. Custom design options like key colors, case color and backlighting are available.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

Low Volume version of the SC-33 Remote Control also available.

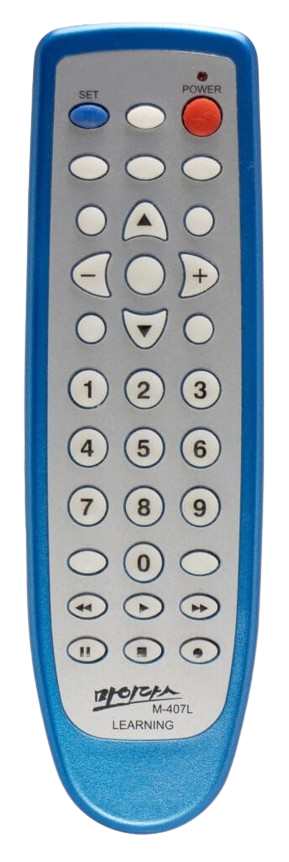

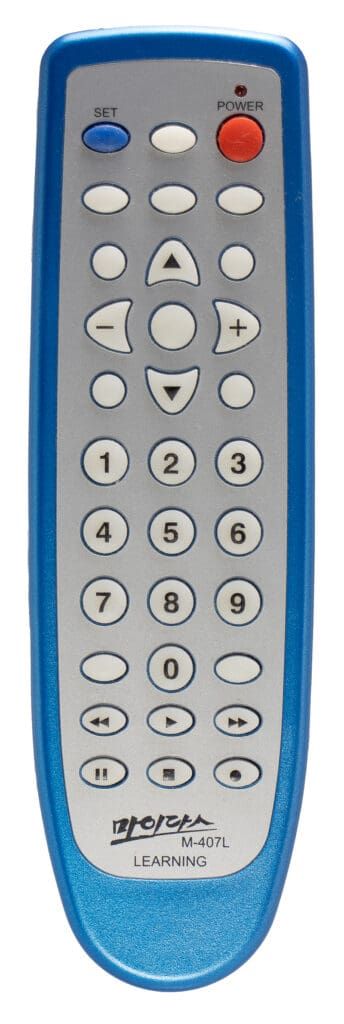

SC33 33 Key OEM remote control front

General Specifications

Max Keys: 33
Dimensions: 6.5 x 1.95 x 0.83in.
165 x 45 x 20mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 2 x AAA

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Yes
RF Option:
Yes
