SR-16A

OEM Infrared or Radio Frequency Remote Control

The SR-16A is a small form factor OEM remote control enclosure. The SR-16A remote control model has 16 key rubber keypad with left, right, up, down navigation plus enter key configuration. It uses one CR2025 lithium coin style battery.

Overlay area surrounding the circular navigation keys allows for unique key configurations to conform to your remote control application design requirements. Custom design options like key colors, case color and backlighting are available.

Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

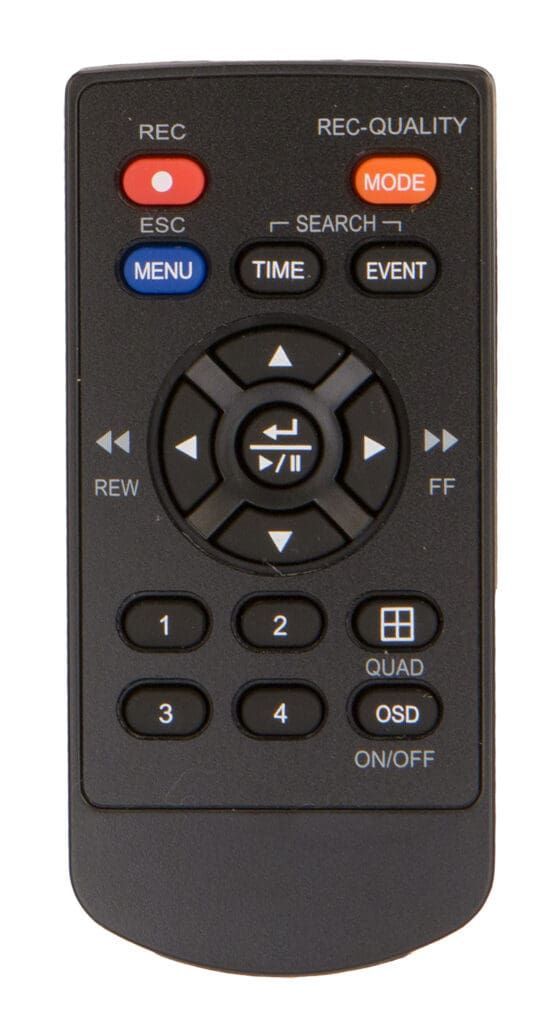

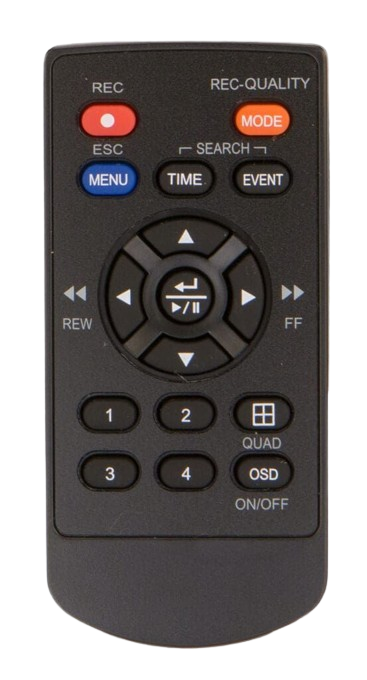

SR-16A 16 key remote control front

General Specifications

Max Keys: 16
Dimensions: 3.4 x 1.6 x 0.35 in.
85.6 x 40 x 11.6 mm
Keypad Type: Silicone Rubber
Feedback LED Available: Yes
Overlay Available: Yes
Back Label Available: Yes
Feedback LED: Yes
IR Lens: No
Batteries: 1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption: Approx. 50mA at IR transmit
Transmission Distance: 20-30ft (6-9m) Standard
IR Frequency Options: 36KHz-56KHz
RF Frequency Options: 27MHz-2.4GHz
Operating Temperature: +5C to +40C
Storage Temperature: -40C to +70C
Humidity Range: 10% to 90% non-condensing
Compliance: RoHS, REACH

Available Options

Custom Codes:
Yes
Button Colors:
Yes
Button Printing:
Yes
Case Color:
Yes
Custom Overlay /
Membrane Keypad:
Yes
RF Option:
Yes
