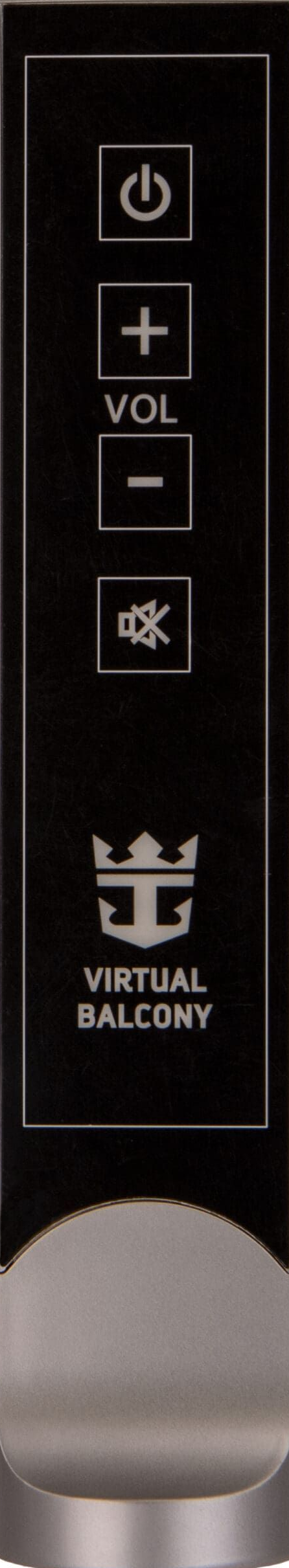

SRT-07

  • OEM Infrared or Radio Frequency Remote Control
  • The SRT-07 is an EL Type (Electroluminescent) backlit OEM remote control with a touch sensor keypad.
  • The SRT-07 is powered by AAA x 2 batteries.
  • This remote control is designed to stand upright on a flat surface.
  • It has a maximum of 11 keys configurable on the electroluminescent key area.
  • The key actuation is a light touch similar to a touchscreen and can be wiped down to clean the surface.
  • The face will illuminate when a key is touched.
  • A motion sensor can be added as a custom option. This allows the remote face to illuminate when the remote control is picked up.
  • The display-on time can be configured at the factory.
  • Custom infrared (IR) and radio frequency (RF) transmission options available.
  • Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

General Specifications

Max Keys:

11

Dimensions:

7.7 x 1.5 x 0.5in.
195 x 38 x 13mm

Keypad Type:

Backlit EL Type (Electroluminescent) Touch Keypad

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA


Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz - 56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
